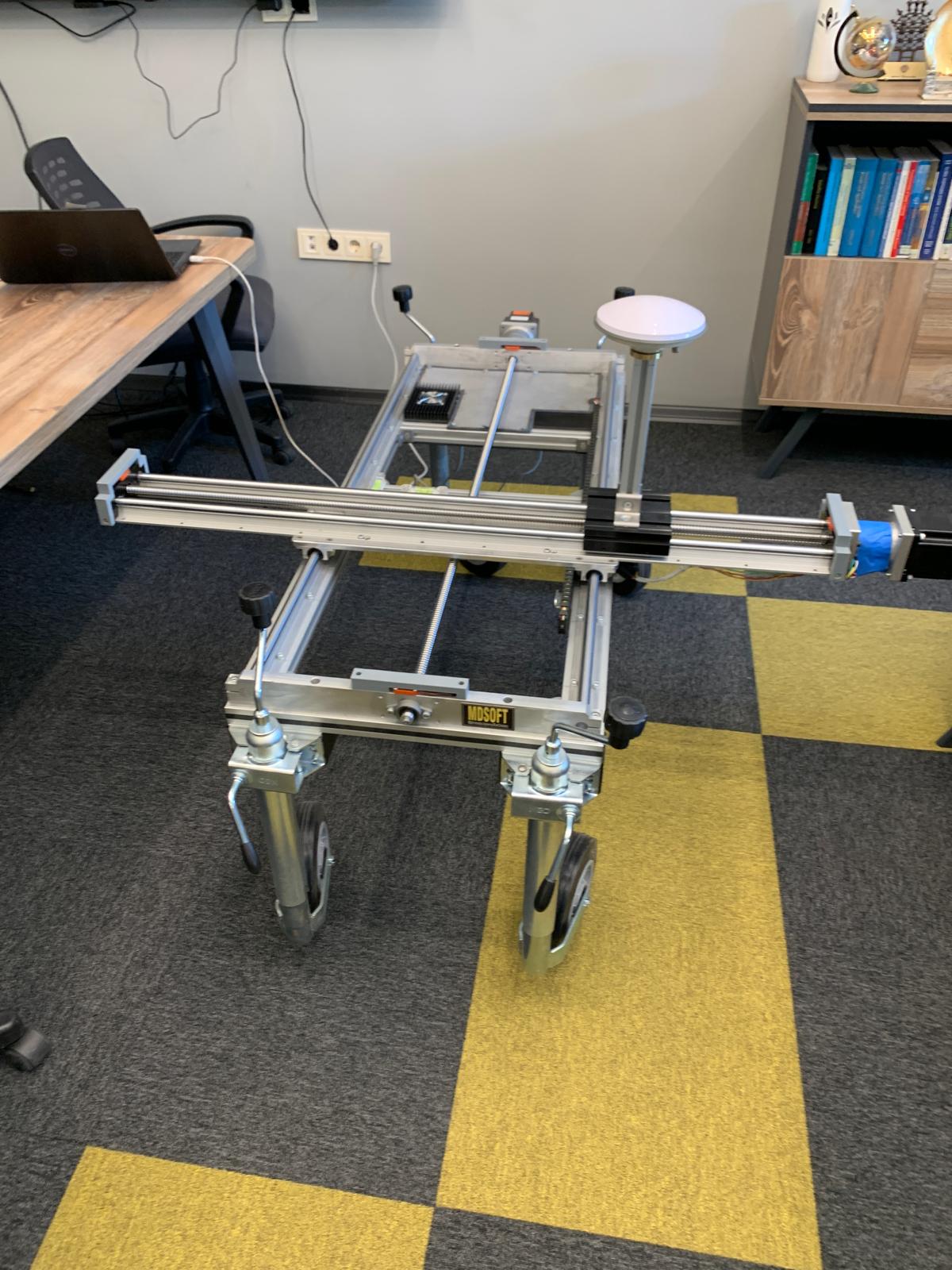

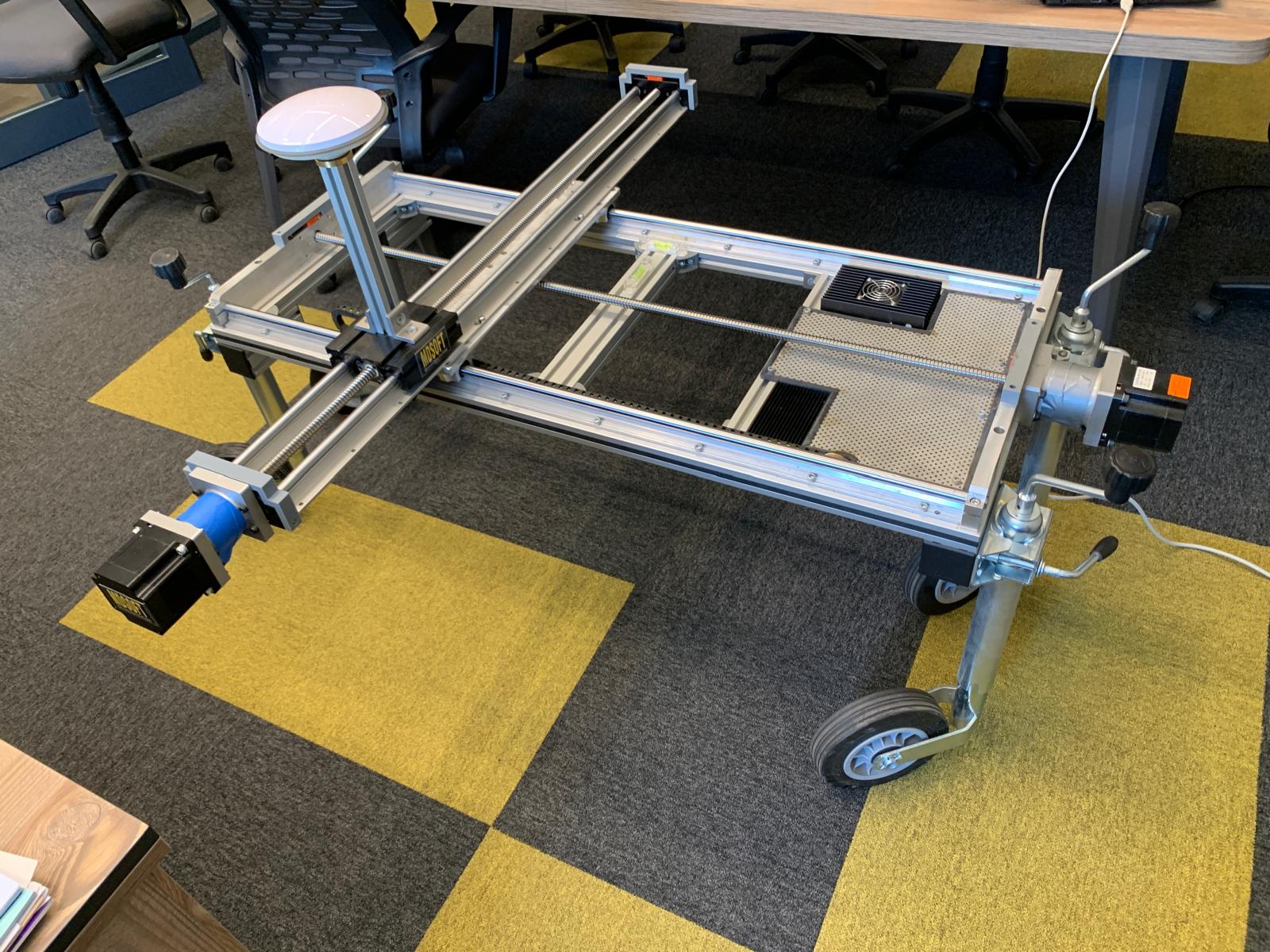

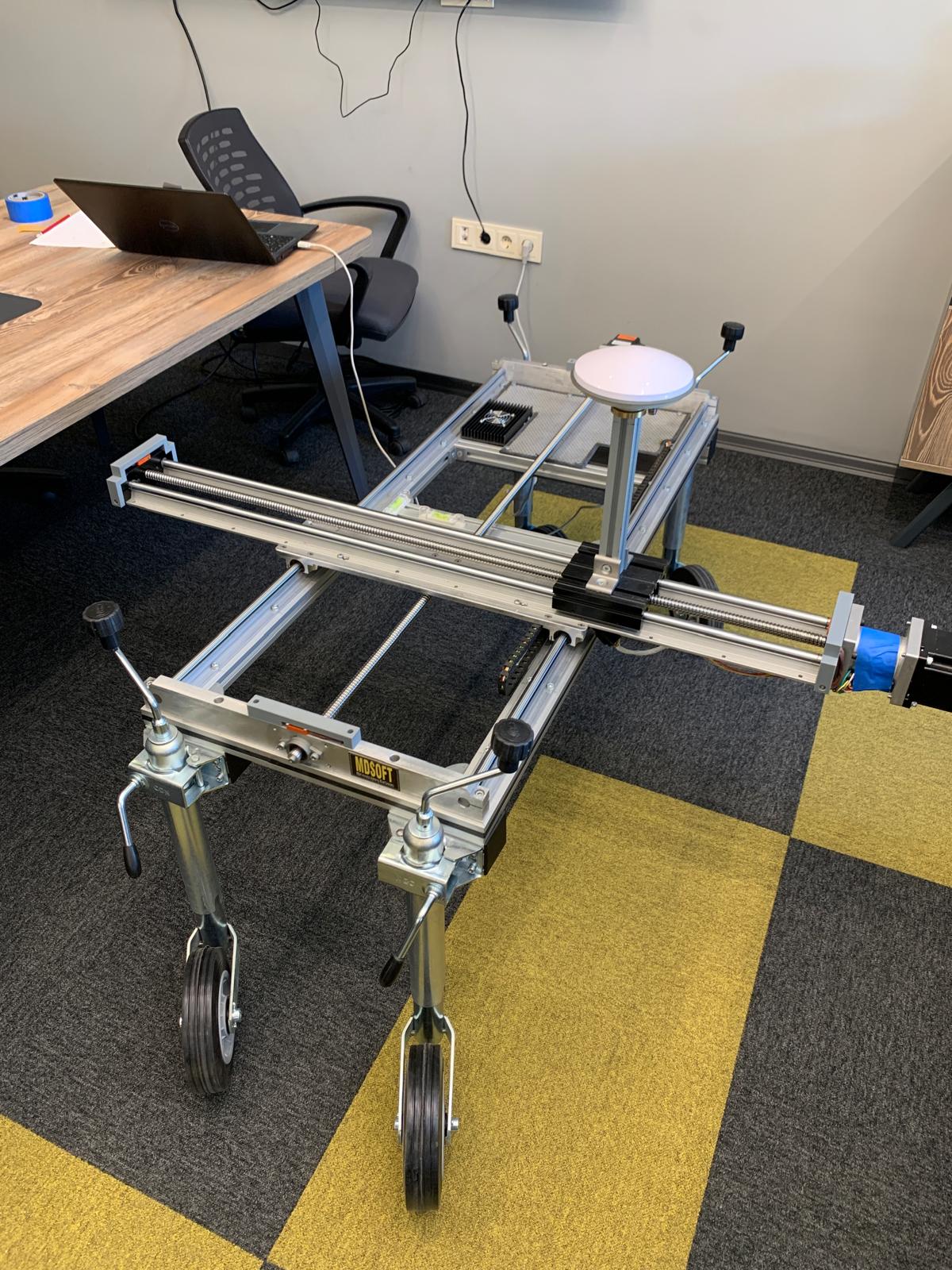

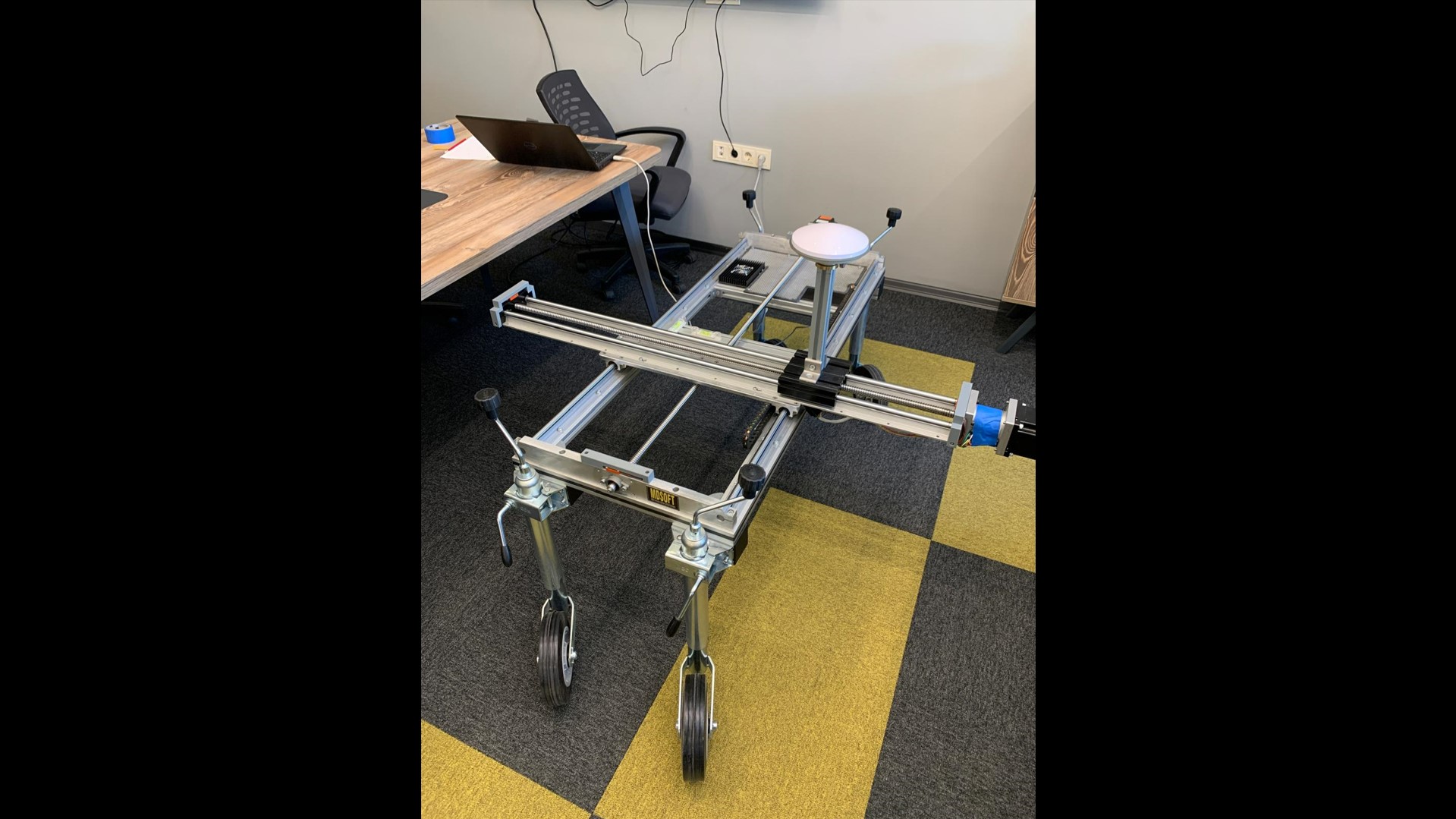

From GNSS RTK applications to inertial sensors and camera calibrations, kinematic motion simulator allows moving an antenna/camera at millimeter level precision. The ground truth provided by the kinematic motion table allows the ultimate assessment of the observed data precision.

With the fully customizable design, the kinematic table can be tailored to suit the needs of your application.

•Easy setup

•Fully programmable 2D/3D path specification

•High-quality and lockable large rubber tires for silent transportation

•Removable design for saving space

•Fully automated use

•Lightweight aluminum structure

•Adjustable Heights

•Up to 20 kg GNSS equipment

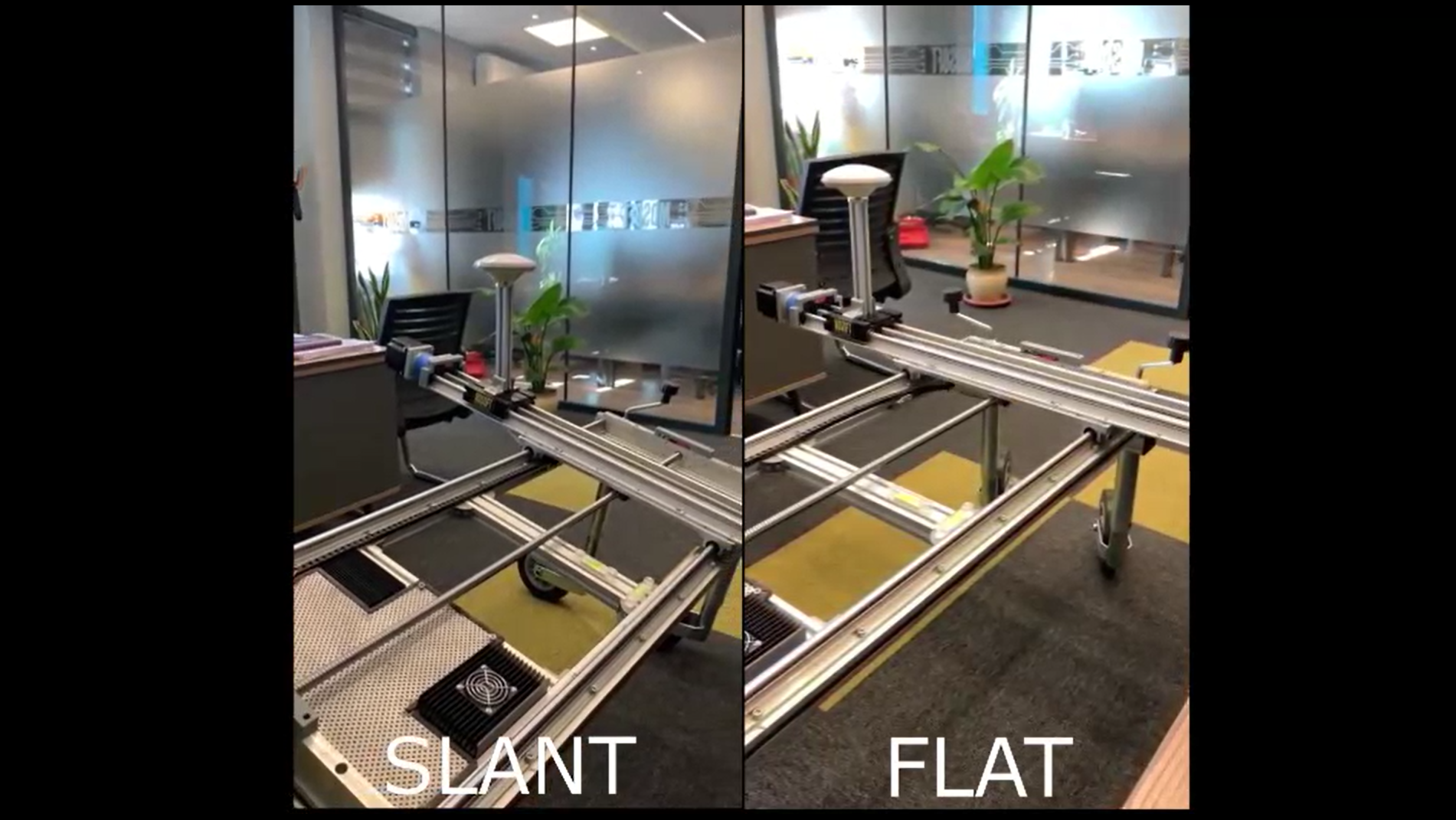

•Flat or slant use

•1 m x 1 m motion table

•0.1 mm location precision

•2D or 3D GNSS Antenna motion

•High speed range between 0.5 mm/s – 100 mm/s

•USB connection to computer

•min 1 Hz

•Ideal for kinematic applications

•Compatible with Industrial Standard RS-274 used in CNC and 3D printing

•Supports power supplies 220 V to 12 V

•Steel screws for high durability

•Operates in harsh temperature conditions

•Cooling fan allowing longer operations at high temperatures

•Auto-stop switch for out-of-range motion

•Double tubular spirit levels for fine levelling
